Versatile Application:
Ring die pellet mill, also known as ring die pellet feed forming machine, belongs to the feed pelletizing equipment.

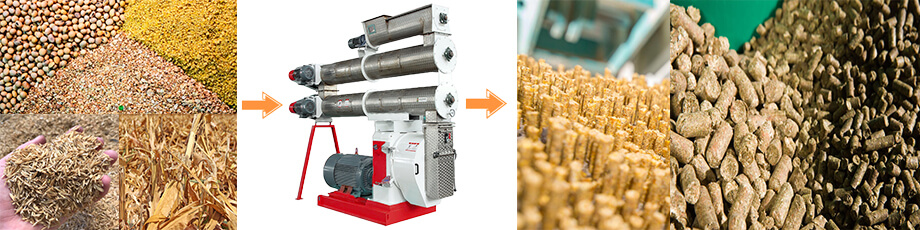

It is used to pelletize materials such as corn stalks, bean stalks, straw, grass, rice husks, etc., into pellets for livestock such as cows, pigs, cattle, sheep, rabbits, chickens, ducks, and fish.
It is suitable for pelletizing in feed mills, breeding farms, traditional Chinese medicine, chemical industry, and other industries. It is also the preferred equipment for large and medium-sized feed mills and livestock farms to produce feed.
| Model | Matching motor power（kw） | Capacity（t/h） |
| SZLH350 | 55 | 2-7 |
| SZLH420 | 110 | 4-14 |
| SZLH508 | 132/160 | 12-20 |
Scope of Application:

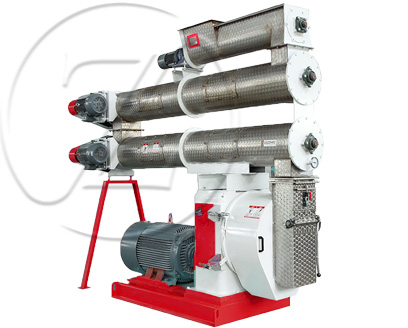

ZTIAS 508 ring die pellet mill is widely applicable in large, medium, and small-scale aquaculture, grain and feed processing plants, livestock farms, poultry farms, individual breeders, as well as medium and small-scale feed processing plants.
It is suitable for use by breeders, whether they are individual farmers or operators of large, medium, or small-sized feed processing facilities.
Working Principle:
ZTIAS 508 feed pellet machine is mainly composed of a feeder, conditioner, pellet mill, lubrication system, etc. The operating procedures require that the mixing ratio of materials and powder should not exceed 15%. The material enters the screw feeder through the material bin.
By adjusting the infinitely variable speed motor to change the speed, the material flows appropriately. Then, through the paddle mixer, the material is mixed with steam to start the temperature adjustment.
After tempering, the material temperature can reach 64°C to 84°C, and the humidity can reach 14% to 16%. Finally, the material enters the pressing box through the chute for pelletizing.
ZTIAS 508 Ring Die Pellet Mill: Elevating Your Feed Production Game with Stainless Precision and Performance Excellence
1.Stainless steel feeder with imported frequency converter for precise and uniform feeding.
2.Stainless steel conditioner ensures effective steam contact with feed, easy to clean and maintain.
3.Dual-motor drive with SPB narrow V-belt transmission for smooth, reliable, and low-noise operation.
4.Pellet mill with various ring dies (1.5mm-12mm) meets diverse customer needs.
5.Quick-release connectors on the ring die for efficient die replacement and increased production.
6.Large-diameter conditioner for optimal material tearing, resulting in smooth flow and suitable particle hardness (98% pelletizing efficiency).
The production process of feed mill :
The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage.
In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.
Do you know the production process of a feed manufacturing plant?
1.Raw material storage ：
Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.
Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:
○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.
In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.
4.Dosing equipment:
mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.
mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.
6.Pellet Mill：
This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.
7.Cooling Equipment:
When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.
8.Pellets Crusher / Breaker / Bucker :
Break the pellets into small particles.It is mainly used for chicken feed pellet line.
9.Screening Equipment:
After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.
This includes both automatic packaging machines and manual packing machines.
11.Dust Removal Equipment:
Essential for eliminating dust and ensuring environmental protection.
12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
Real Shot
