Double Scale Granule Weighing Packaging Machine

⚪Customization&OEM
⚪ Tailored Solutions, Customized Plans.
⚪Install with precision and expertise.
⚪Support throughout and beyond.

Product Introduction

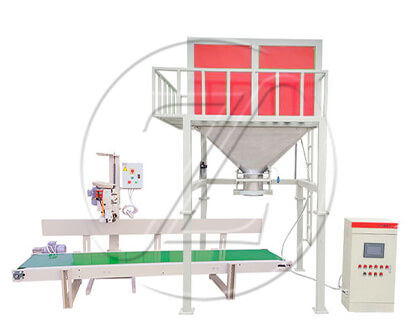

Double scales granule weighing packaging machine with wide dosing range and high precision, together with the conveyor sewing machine whose table can be lifted and lowered, it is a multi-purpose machine with high efficiency.

Technical parameters:

Packaging range:

25-50kg

Machine weight:

700Kg

Precision:

±0.2%-0.5%

Overall Dimension:

1520*1300*3600mm(LWH)

Packing speed:

480-600 bags/hour

Sewing machine motor power:

0.37Kw

Power supply:

380v 1.1Kw

Conveyor motor power:

0.75 Kw

Product Introduction

With its "fast, accurate, stable" - to become a suitable choice for packaging in various industries.

◆Adaptation applicable package material: applicable to woven bags, sacks paper bags, cloth bags and plastic bags, etc..

◆Materials: 304 stainless steel is used in the parts contacting with materials, with high corrosion resistance.

◆Widely used in feed, compound fertilizer, BB fertilizer, grain, seed, chemical and other industries.

◆Applicable materials: granular materials, powder materials, mixed materials.

◆Specially designed charging and measuring mechanism improves the flow speed of materials, fast packing speed and high packing precision.

◆ Wide dosing range, high precision, with the conveyor sewing machine whose table can be lifted, it is multi-purpose and high efficiency.

◆It adopts imported sensor and imported pneumatic actuator, reliable work and simple maintenance.

◆Adaptive software, with automatic setting of control parameters, automatic correction of fall difference.

The production process of feed mill :

The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage. In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.

Do you know the production process of a feed manufacturing plant?

1.Raw material storage

Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.

2.Cleaning Equipment:

 Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:

○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.

3.Crushing Equipment:

In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.

4.Dosing equipment:

mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.

5.Mixing Equipment:

mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.

6.Pellet Mill

This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.

7.Cooling Equipment:

When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.

8.Pellets Crusher / Breaker / Bucker :

Break the pellets into small particles.It is mainly used for chicken feed pellet line.

9.Screening Equipment:

After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.

10.Packaging/Bagging Machine:

This includes both automatic packaging machines and manual packing machines.

11.Dust Removal Equipment:

Essential for eliminating dust and ensuring environmental protection.

12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
