Product Introduction:
Widely used in feed, compound fertilizer, BB fertilizer, grain, seed, chemical and other industries.
Applicable package materials:
Suitable for woven bags, sacks paper bags, cloth bags and plastic bags.
Applicable materials:
Granular materials, powdered materials, mixed materials.
Performance characteristics:
1.Special design of feeding and having bucket type metering, set the bag to unload the bag at the same time, does not affect the lower material metering. Saving one-third of the operating time, fast packing speed, high packing precision.
2.Adaptive software with automatic setting of control parameters and automatic correction of fallout.
3.Wide dosing range, high precision, with the table can be lifted with the conveyor sewing machine, multi-purpose, high efficiency.
4.Adopting imported sensors, imported pneumatic actuators, reliable work, simple maintenance.
5.The equipment can be customized according to customers' requirements.

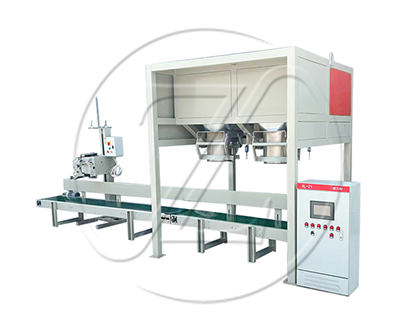

Duplex powder packaging machine is about 3 bags per minute more than single station packaging machine, the specific efficiency is subject to the operator's proficiency.
The production process of feed mill :
The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage. In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.
Do you know the production process of a feed manufacturing plant?
1.Raw material storage ：
Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.
Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:
○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.
In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.
4.Dosing equipment:
mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.
mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.
6.Pellet Mill：
This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.
7.Cooling Equipment:
When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.
8.Pellets Crusher / Breaker / Bucker :
Break the pellets into small particles.It is mainly used for chicken feed pellet line.
9.Screening Equipment:
After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.
This includes both automatic packaging machines and manual packing machines.
11.Dust Removal Equipment:
Essential for eliminating dust and ensuring environmental protection.
12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
