Product Categories+

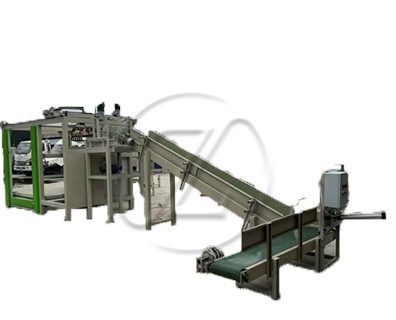

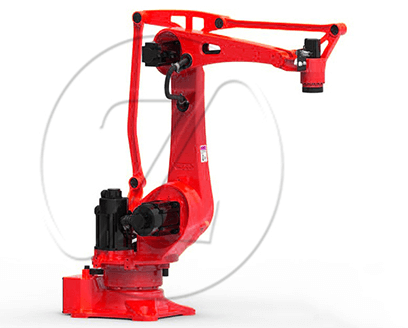

Palletizing Robots

⚪Customization&OEM
⚪ Tailored Solutions, Customized Plans.
⚪Install with precision and expertise.
⚪Support throughout and beyond.

Applicable industries:

Automotive parts, photovoltaic, food and beverage, building materials, logistics and warehousing industries.

Applicable scenes:

Can be widely used in spot welding, handling, palletizing, loading and unloading and other scenes.

Functional features:

Thanks to the high rigidity structure, together with the high-speed intelligent palletizing process package, the efficiency can be increased by 20%, helping customers to finish their work faster and better.

Integration of several industry-specific process packages, together with soft PLC and various bus interfaces, help customers easily face various process challenges;.

High-performance collision detection function helps to improve safety.

Technical parameters:

Name:

Industrial robots

Type:

Vertical Joint 4 Degrees of Freedom

Main applications:

handling, palletizing, loading and unloading

Maximum transportable weight:

60kg

Repeatability of position:

±0.2mm



Motion Range











Basic Axis






J1

±180°

J2

-35° +90°

J3

-15° +100°

Arm Axis

J4

±360°

Maximum speed








Basic Axis






J1

170°/S

J2

148°/S

J3

185°/S

Arm Axis

J4

285°/S

Power capacity

5.0KVA

Installation

ground level

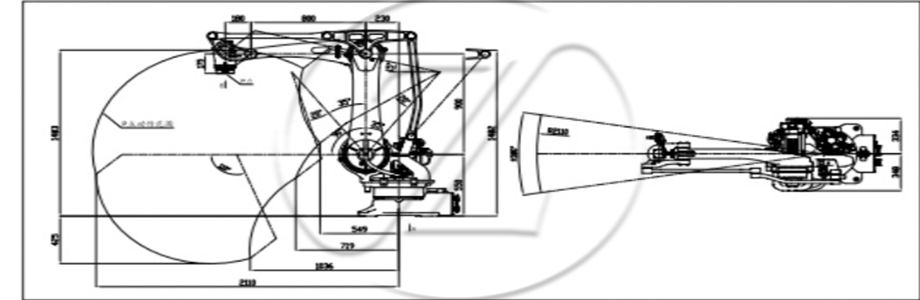

P-point action range

see chart below

Environmental conditions

0-45°C, 20-80% RH (no condensation)

Body weight

500kg

Protection class

/



The production process of feed mill :

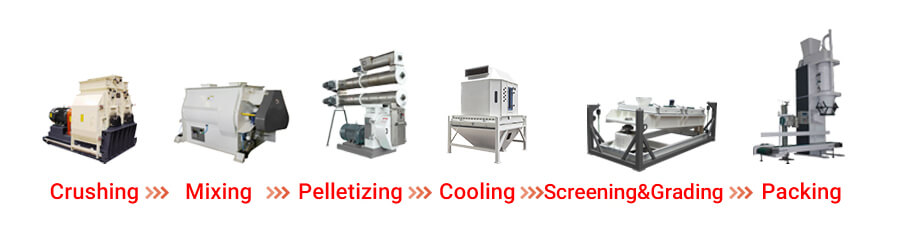

The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage. In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.

Do you know the production process of a feed manufacturing plant?

1.Raw material storage

Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.

2.Cleaning Equipment:

 Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:

○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.

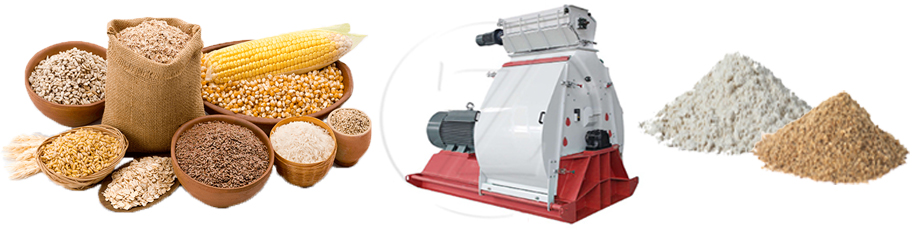

3.Crushing Equipment:

In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.

4.Dosing equipment:

mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.

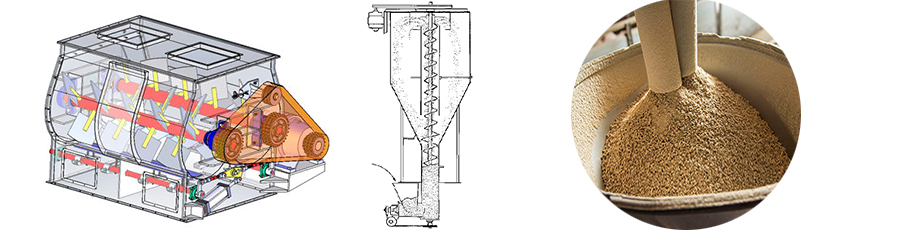

5.Mixing Equipment:

mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.

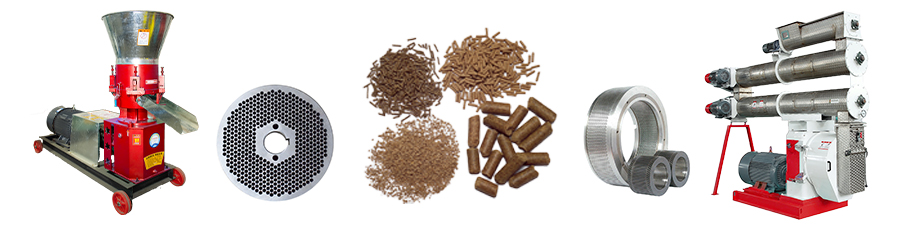

6.Pellet Mill

This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.

7.Cooling Equipment:

When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.

8.Pellets Crusher / Breaker / Bucker :

Break the pellets into small particles.It is mainly used for chicken feed pellet line.

9.Screening Equipment:

After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.

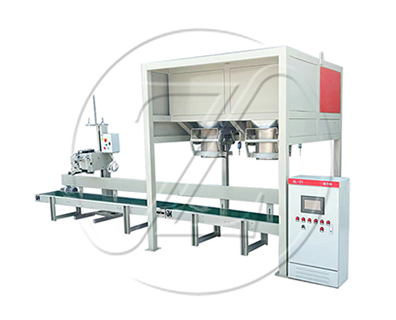

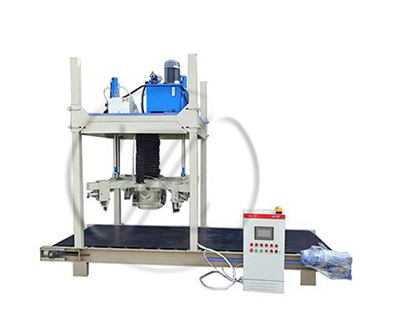

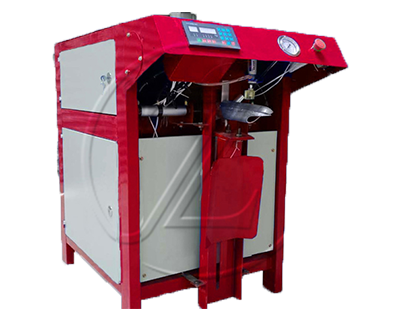

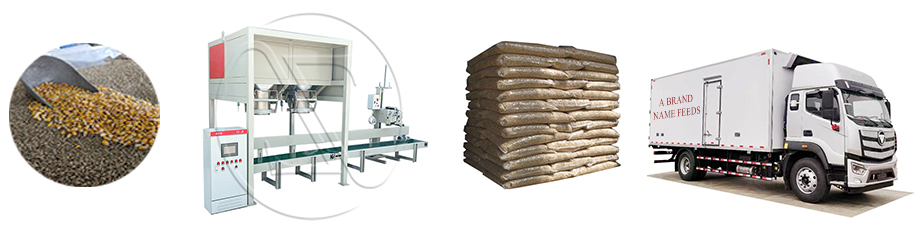

10.Packaging/Bagging Machine:

This includes both automatic packaging machines and manual packing machines.

11.Dust Removal Equipment:

Essential for eliminating dust and ensuring environmental protection.

12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
