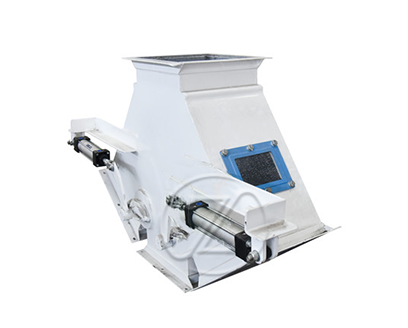

Pneumatic Three Way

Pneumatic three-way valve is a crucial fluid control component designed to adjust the flow direction of materials within a system.
Widely used in fields such as feed mills, grain processing plants, oil mills, and warehouses, this equipment, through its flexible pneumatic actuation mechanism, swiftly and reliably alters the flow direction of materials in the system, achieving efficient automatic material conveyance.

1.Directional Control: Adjusts the flow direction of fluids (gas or liquid) in the system, facilitating fluid switching between different pipelines.

2.Quick Response: Can swiftly switch flow directions in a short time, enhancing the system's response speed.

3.Flexible Operation: Adaptable to various application scenarios and levels of automation.

4.Diverse Applications: Widely used in feed mills, grain processing plants, oil mills, etc., for automated material conveyance, improving production efficiency.

5.Corrosion-Resistant Materials: Ensures good stability and durability in various industrial environments.

6.Automation Control: Achieves intelligent monitoring and control of fluid flow direction through sensors and other devices, elevating the system's level of intelligence.

7.High Reliability: Suitable for long-duration, high-frequency industrial operations.

8.Compact Design: Occupies relatively small space, contributing to the flexibility of system layout.

The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage. In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.

1.Raw material storage ：

Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.

2.Cleaning Equipment:

 Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:

○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.

3.Crushing Equipment:

In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.

4.Dosing equipment:

mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.

5.Mixing Equipment:

mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.

6.Pellet Mill：

This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.

7.Cooling Equipment:

When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.

8.Pellets Crusher / Breaker / Bucker :

Break the pellets into small particles.It is mainly used for chicken feed pellet line.

9.Screening Equipment:

After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.

10.Packaging/Bagging Machine:

This includes both automatic packaging machines and manual packing machines.

11.Dust Removal Equipment:

Essential for eliminating dust and ensuring environmental protection.

12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
