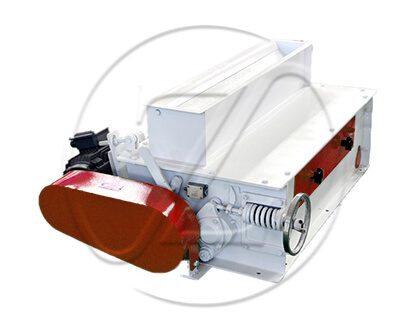

Introduction of SSLG Feed Crushing Machine:
The SSLG feed crumbler is a specialized piece of equipment used in feed processing. Its main function is to crush larger pellet feed products that are produced by pellet mills.For instance, feed pellets with a diameter ranging from 3-6 millimeters can be effectively crushed into smaller particles with a diameter of 1.5-2.5 millimeters. Following the crushing process, the resulting smaller pellets can be further cooled using a cooler.This equipment plays a crucial role in refining the size of feed particles, contributing to the overall efficiency and quality of the feed processing operation.
Why Use SSLG Feed Crushing Machine:
1.This product is a specialized equipment in the pelletizing section, used for the crushing of pelletized feed.
2.Customizable with double-roll or triple-roll structures, it adopts variable frequency speed regulation for uniform feeding.
3.Specially designed toothed rollers can meet the crushing requirements of different materials, providing excellent and uniform crushing.
4.The advanced rotating mechanism is equipped with a bypass device and a sampling hole, allowing real-time monitoring and adjustment of the crushing fineness.
Working Principle of SSLG Feed Crushing Machine:

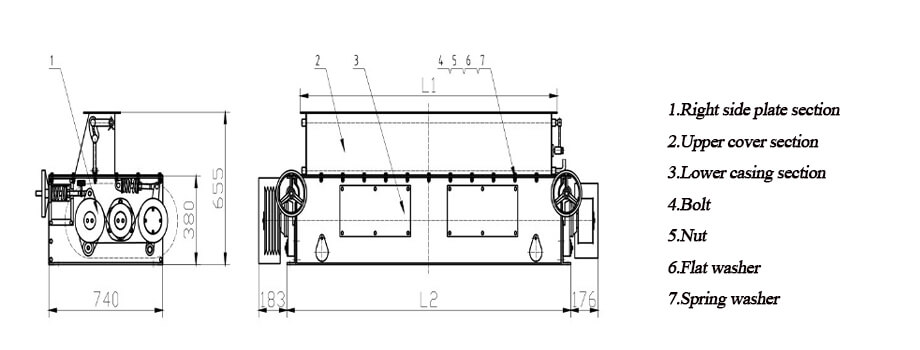

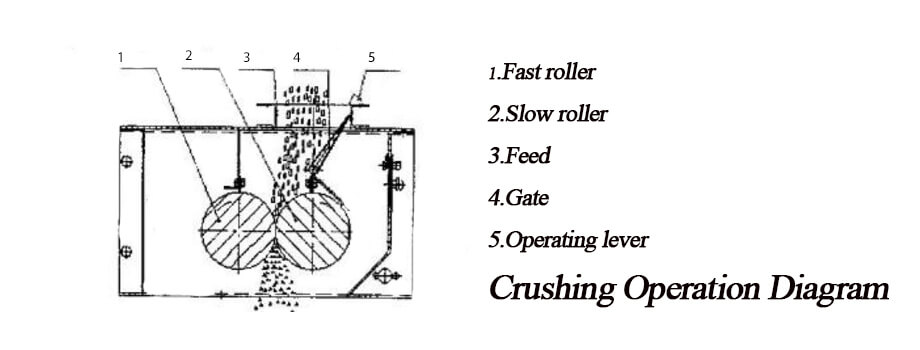

This machine mainly consists of fast and slow rollers, a transmission mechanism, a gate control, roller gap adjustment, and a tensioning mechanism. The working process involves feeding the pressed pellets, cooled by a cooler, into the entrance of the crusher. The pellets enter the space between the two rollers through an opened gate. The rollers, with different speeds, have grooves on their surfaces.The particles are crushed by the extrusion and differential shearing action between the two rollers, and the degree of crushing is related to the roller gap.
Technical Parameters
| Model | Power(kW) | Capacity(t/h) |
| SSLG15*100 | 5.5 | 4-6 |
| SSLG15*120 | 5.5 | 5-7 |
| SSLG15*150 | 7.5 | 8-10 |
| SSLG15*170 | 15 | 10-15 |
The production process of feed mill :
The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage.
In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.
Do you know the production process of a feed manufacturing plant?
1.Raw material storage ：
Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.
Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:
○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.
In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.
4.Dosing equipment:
mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.
mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.
6.Pellet Mill：
This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.
7.Cooling Equipment:
When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.
8.Pellets Crusher / Breaker / Bucker :
Break the pellets into small particles.It is mainly used for chicken feed pellet line.
9.Screening Equipment:
After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.
This includes both automatic packaging machines and manual packing machines.
11.Dust Removal Equipment:
Essential for eliminating dust and ensuring environmental protection.
12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
