Product Introduction

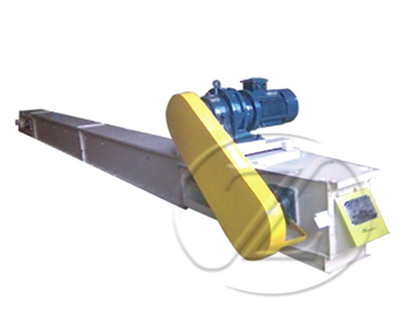

TGSS scraper conveyor is an efficient and reliable material conveying equipment, primarily composed of chains, scrapers, a drive system, and an enclosed conveying trough.
Its unique design enables the scraper to move along the surface of the conveying trough under the drive of the chain, effectively pushing the material along the conveyor line.
Widely used in industries such as grain, oil processing, and feed production, especially suitable for horizontal or slightly inclined conveying tasks.
TGSS scraper conveyor, with its stability, high conveying efficiency, and easy operation and maintenance, is an ideal choice for improving the efficiency of material transportation in production lines.
Why choose our scraper Conveyor?
1.Firstly, its outstanding conveying efficiency is achieved by driving the scraper with chains to achieve efficient and stable material transportation, particularly excelling in horizontal or slightly inclined conveying tasks.
2.Secondly, it adopts an enclosed conveying trough design, effectively preventing dust and leakage, ensuring a clean working environment and production safety.
3.Additionally, the compact structure of this conveyor requires a small footprint, making it suitable for industrial scenarios with limited space.
4.Finally, the wear-resistant materials for chains and scrapers, along with an efficient drive system, ensure reliable operation for an extended period and low maintenance costs.
The production process of feed mill :
The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage. In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.
Do you know the production process of a feed manufacturing plant?
1.Raw material storage :
Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.
Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:
○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.
In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.
4.Dosing equipment:
mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.
mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.
6.Pellet Mill:
This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.
7.Cooling Equipment:
When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.
8.Pellets Crusher / Breaker / Bucker :
Break the pellets into small particles.It is mainly used for chicken feed pellet line.
9.Screening Equipment:
After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.
This includes both automatic packaging machines and manual packing machines.
11.Dust Removal Equipment:
Essential for eliminating dust and ensuring environmental protection.
12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
