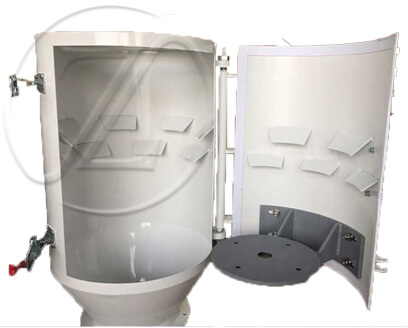

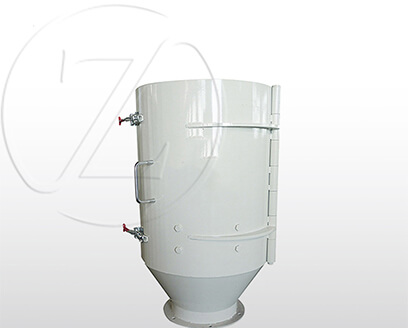

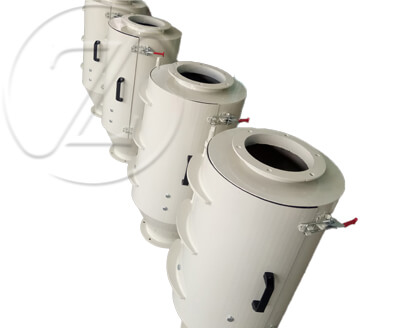

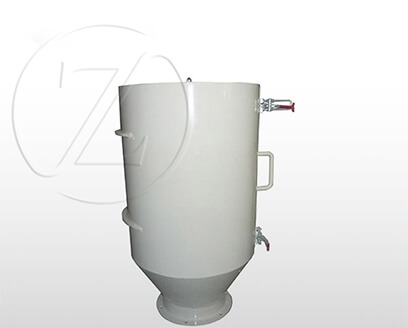

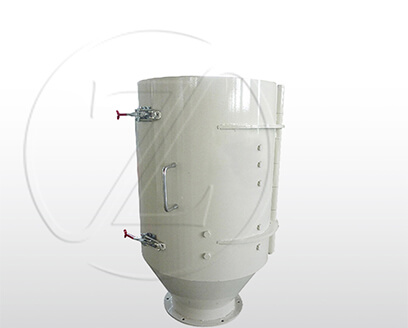

Introduction of TCXT Permanent Magnet Sleeve:
TCXT Permanent Magnet Sleeve is commonly used to separate dry powder and iron impurities in granular materials, such as iron scraps, nuts, screws, bolts, etc., to enhance the purity of the materials and protect subsequent processing equipment.
Why Use TCXT Permanent Magnet Sleeve:
High Magnetic Performance: The permanent magnet sleeve utilizes permanent magnetic materials, providing powerful magnetic capabilities to effectively attract and separate iron impurities.
Stability: The magnetic properties of permanent magnet materials are relatively stable, resistant to demagnetization, maintaining high magnetic performance over an extended period.
Wear Resistance: The sleeve is typically designed with good wear resistance, ensuring a longer lifespan when processing granular materials.
Automation: In some industrial applications, the permanent magnet sleeve can be integrated into automated systems, achieving efficient separation processes and reducing manual intervention.
Improved Material Purity: Suitable for separating iron impurities in granular materials, enhancing the purity of raw materials, and protecting downstream processing equipment from metal contamination.
Low Maintenance Costs: Due to the permanent magnet sleeve's extended lifespan and relatively stable performance, it generally incurs lower maintenance costs.
Working Principle of TCXT Permanent Magnet Sleeve:
The working principle of a permanent magnet sleeve involves the attractive force of the permanent magnetic field, which separates iron impurities from granular materials, enhancing material purity and preventing iron impurities from entering downstream processing equipment. This type of equipment is commonly used in processes such as grinding, vibration screening, and other granular material handling operations.
Technical Parameters
| Model | Capacity(T/H） |
| TCXT20 | 20-30 |
| TCXT25 | 30-50 |
| TCXT30 | 50-70 |
| TCXT40 | 80-100 |
The production process of feed mill :
The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage. In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.
Do you know the production process of a feed manufacturing plant?
1.Raw material storage ：
Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.
Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:
○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.
In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.
4.Dosing equipment:
mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.
mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.
6.Pellet Mill：
This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.
7.Cooling Equipment:
When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.
8.Pellets Crusher / Breaker / Bucker :
Break the pellets into small particles.It is mainly used for chicken feed pellet line.
9.Screening Equipment:
After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.
This includes both automatic packaging machines and manual packing machines.
11.Dust Removal Equipment:
Essential for eliminating dust and ensuring environmental protection.
12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
