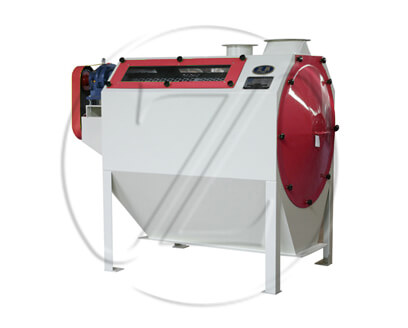

Introduction of TSCY Drum Pre-cleaner:
TSCY Drum Pre-cleaner is a special equipment for the initial cleaning of grains and other bulk materials. It effectively removes large impurities and improves the quality of processed materials by rotating the cylinde.
Why Use TSCY Drum Pre-cleaner?
Removing Initial Large Impurities:
The TSCY Drum Pre-cleaner is specifically designed to eliminate initial large impurities in raw materials, such as stones, weeds, etc. This helps improve the quality of the raw materials and prevents these large impurities from affecting subsequent production processes and equipment.
Protecting Subsequent Equipment:
By removing large impurities in the early stages of raw material processing, the TSCY Drum Pre-cleaner effectively safeguards subsequent production equipment, such as grinding mills and mixers, reducing the risk of equipment wear and malfunctions and extending equipment lifespan.
Enhancing Product Quality:
Clearing away large impurities contributes to an improvement in the final product's quality. Ensuring the purity of raw materials results in finished products that meet specifications and standards, satisfying market demands.
Optimizing Production Processes:
The use of the TSCY Drum Pre-cleaner aids in optimizing production processes, enhancing production efficiency. Handling impurities in the initial cleaning phase reduces downtime and maintenance costs along the production line.
Wide Applicability:
This equipment is suitable for various grains and bulk materials, displaying strong versatility. It can be adjusted according to the requirements of different raw materials, meeting the needs of diverse industries and production processes.
Working Principle of TSCY Drum Pre-cleaner:
The TSCY drum pre-cleaner is mainly composed of a housing, frame, inclined drum, transmission device, support device, and other components. When materials fall onto the rotating drum through the inlet, they come into full contact with the drum and roll on it due to the drum's rotation. Materials smaller than the sieve holes pass through the inner drum and fall onto the outer drum. Materials that cannot pass through the sieve holes are gradually pushed towards the outlet by the rotating inclined drum and are eventually collected by a hopper. They are then directed through a material pipe into a curtain crusher for further crushing. The materials that fall onto the outer drum undergo continuous screening. Fine powder and particles smaller than the sieve holes fall into the hopper through the sieve holes and are directed into a pelletizing bin through a material pipe. Collected in the hopper, they proceed to the next processing step through a material pipeline.
Technical Parameters
| Model | Power(kw) | Power(kW) |
| TSCY63 | 0.55 | 10-30 |
| TSCY80 | 0.75 | 30-60 |
| TSCY100 | 1.5 | 60-80 |
| TSCY130 | 3 | 80-120 |
The production process of feed mill :
The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage. In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.
Do you know the production process of a feed manufacturing plant?
1.Raw material storage ：
Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.
Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:
○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.
In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.
4.Dosing equipment:
mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.
mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.
6.Pellet Mill：
This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.
7.Cooling Equipment:
When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.
8.Pellets Crusher / Breaker / Bucker :
Break the pellets into small particles.It is mainly used for chicken feed pellet line.
9.Screening Equipment:
After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.
This includes both automatic packaging machines and manual packing machines.
11.Dust Removal Equipment:
Essential for eliminating dust and ensuring environmental protection.
12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
