Ton Bag Packing Machine

⚪Customization&OEM
⚪ Tailored Solutions, Customized Plans.
⚪Install with precision and expertise.
⚪Support throughout and beyond.

Product Introduction

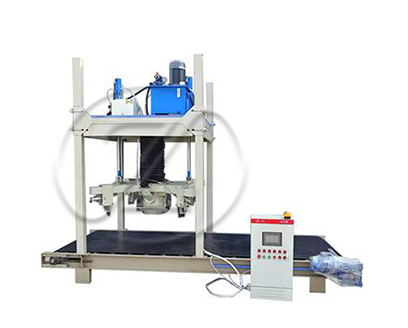

Ton bag packing machine is a large-scale weighing and packing equipment used to pack materials in big bags, which is a multi-purpose packing machine integrating electronic weighing, automatic bag removal and dust removal.
The ton bag packing machine has high degree of automation, high packing precision and adjustable packing speed. Ton bag packaging machine is suitable for minerals, chemicals, building materials, grain, feed industry, large bags of packaging materials.

Functional features:

1.Intelligent control instrument, high metering accuracy, stable performance, digital display, Chinese operation interface, operation is more simple and fast.
It has the functions of automatic setting of control parameters, automatic correction of falling difference, alarm for over-difference, self-diagnosis of faults and so on.

2.Using no measuring barrel structure, the machine height is low, occupies little space.

3.Adopting belt type feeding, adapting to the flow speed of all kinds of materials, fast packing speed, high precision, preventing the blocking phenomenon when feeding. With high-precision sensors, imported pneumatic actuators, high reliability, simple maintenance.

4.The casing adopts advanced plastic spraying technology, the parts contacting with materials are smooth and wear-resistant, with good fluidity, high hygiene standard, corrosion resistance and long service life.

5.Optional and reserved dust removal system, dust materials for systematic recovery.

Technical parameters:

Weighing range(kg)

1000~1500kg

Weighing speed(package/h)

≥20

Power supply

Three-phase four-wire AC 380V 220V 50Hz (user-supplied)

Air source

 It is recommended to choose the air compressor with exhaust capacity above 0.36 m3/min.

Working environment

0~+40℃ Relative humidity ≤90%.

Manufacturing materials

Contact with the material is made of carbon steel, good fluidity, wear resistance, corrosion resistance, easy to remove the hygiene

Feeding mode



Star feeder, screw feeder, feeding



Installation size (mm)

3200 (height) × 4200 (length) × 1800 (width)

Computer control instrument



Intelligent computer controller Touch screen



Installation

The scale is directly connected to the storage bin and requires an auxiliary steel frame. Small floor space, easy to install.

The production process of feed mill :

The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage. In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.

Do you know the production process of a feed manufacturing plant?

1.Raw material storage

Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.

2.Cleaning Equipment:

 Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:

○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.

3.Crushing Equipment:

In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.

4.Dosing equipment:

mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.

5.Mixing Equipment:

mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.

6.Pellet Mill

This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.

7.Cooling Equipment:

When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.

8.Pellets Crusher / Breaker / Bucker :

Break the pellets into small particles.It is mainly used for chicken feed pellet line.

9.Screening Equipment:

After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.

10.Packaging/Bagging Machine:

This includes both automatic packaging machines and manual packing machines.

11.Dust Removal Equipment:

Essential for eliminating dust and ensuring environmental protection.

12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
