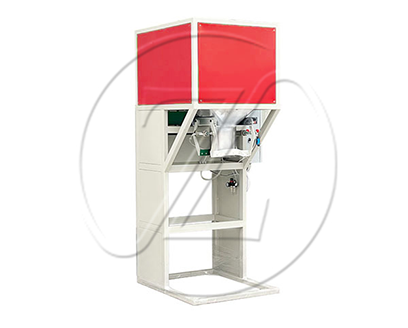

Quantitative granule packing machine

⚪Customization&OEM
⚪ Tailored Solutions, Customized Plans.
⚪Install with precision and expertise.
⚪Support throughout and beyond.

Product Introduction

ZTIAS quantitative packaging machine applicable materials: granular materials, powder materials, mixed materials. With its "fast, accurate, stable" - to become the choice of packaging in various industries.

Applicable materials:

Granular materials, powder materials, mixed materials. With its "fast, accurate, stable" - become the choice of packaging in various industries!

Functional features:

1. Set feeding, weighing, bag clamping, conveying, sewing package as a whole, suitable for woven bags, sacks, paper bags, cloth bags and plastic belts, etc.

2.Materials;Material contact parts are made of 304 stainless steel, high pit corrosion ability. Pneumatic actuator, reliable work, simple maintenance.

3.The use of high-speed sampling and processing instrumentation and digital frequency technology, with automatic setting of control parameters, fall automatically corrected.
Adapt to different packaging material characteristics, continuous operation, simple and flexible operation.

4.Equipped with RS-232C or RS485 communication interface, can be networked with the upper computer perfect exhaust system and good sealing performance, double sealing to prevent powder leakage, to ensure high purity of the product.

5.Specially designed charging and hopper type metering mechanism to improve the flow of materials, packaging speed, packaging precision. Can be customized according to customer's demand

6.Widely used in grain, grease, feed, food, sugar, starch, flour, protein powder, fiber, skin, seed processing, chemical industry, chemical fertilizer, cement, warehousing, wharf and other industries in the production and operation of automatic quantitative packaging.
Wide quantitative range, high precision, with the table can be lifted with the conveyor sewing machine, a machine multi-purpose, high efficiency.

Technical parameters:

Model

YH-A25

YH-A50

Packaging range

5-25kg

25-50kg

Packing speed

500-800 bags/hour

300-600 bags/hour

Packaging precision

±0.2%

Power supply

220V 0.1KW

Machine weight

160kg

Overall dimension

720*630*1900mm

The production process of feed mill :

The Feed Milling Process typically involves the stages of raw material reception and storage, cleaning, crushing, dosing & mixing (batching), pelletizing, cooling, pellet refinement, screening & grading, packaging, and storage. In specific cases where clients have unique requirements for feed pellet production equipment, additional features such as liquid infusion, curing, spraying, extrusion, drying, and more may be integrated.

Do you know the production process of a feed manufacturing plant?

1.Raw material storage

Given the diverse array of ingredients in animal feed, various types of silos are essential. The feed pellet production line can employ three types of silos, namely hopper silos, flat-bottom silos, and galvanized silos.

2.Cleaning Equipment:

 Primarily employed for eliminating impurities from feed raw materials, particularly large, medium, and ferrous impurities, aiming to achieve the following objectives:

○ Safeguarding both equipment and workers,○ Enhancing the quality of feed products, and ○ Ensuring secure and efficient equipment operation.

3.Crushing Equipment:

In accordance with the process flow and raw material composition of feed production, it is necessary to crush the raw materials to the required particle size.

4.Dosing equipment:

mainly used for dosing various raw materials, mixing materials evenly, including manual dosing type and automatic dosing type.

5.Mixing Equipment:

mix the feed ingredients thoroughly. This stage demands short blending cycles, high mixing quality, rapid discharge, low residue rates, excellent airtightness, and zero dust spillage.

6.Pellet Mill

This process is to press out the pellets, the finished pellets are good palatability, storage resistance, there are two kinds of flat model and ring model, feed mills mainly use ring die pelletizing machine.

7.Cooling Equipment:

When pellets are extruded from the pellet machine, their moisture content reaches approximately 16%, and the temperature can reach 80-90 degrees Celsius. To facilitate pellet storage, the cooling process is indispensable.

8.Pellets Crusher / Breaker / Bucker :

Break the pellets into small particles.It is mainly used for chicken feed pellet line.

9.Screening Equipment:

After the pellet feed undergoes the crushing process, certain undesired materials such as powder are generated. This process primarily involves separating the non-conforming pellets and powder, allowing the qualified pellets to proceed to the next stage of production.

10.Packaging/Bagging Machine:

This includes both automatic packaging machines and manual packing machines.

11.Dust Removal Equipment:

Essential for eliminating dust and ensuring environmental protection.

12.Conveyor: for conveying feed ingredients, semi-finished and finished feeds
